Description

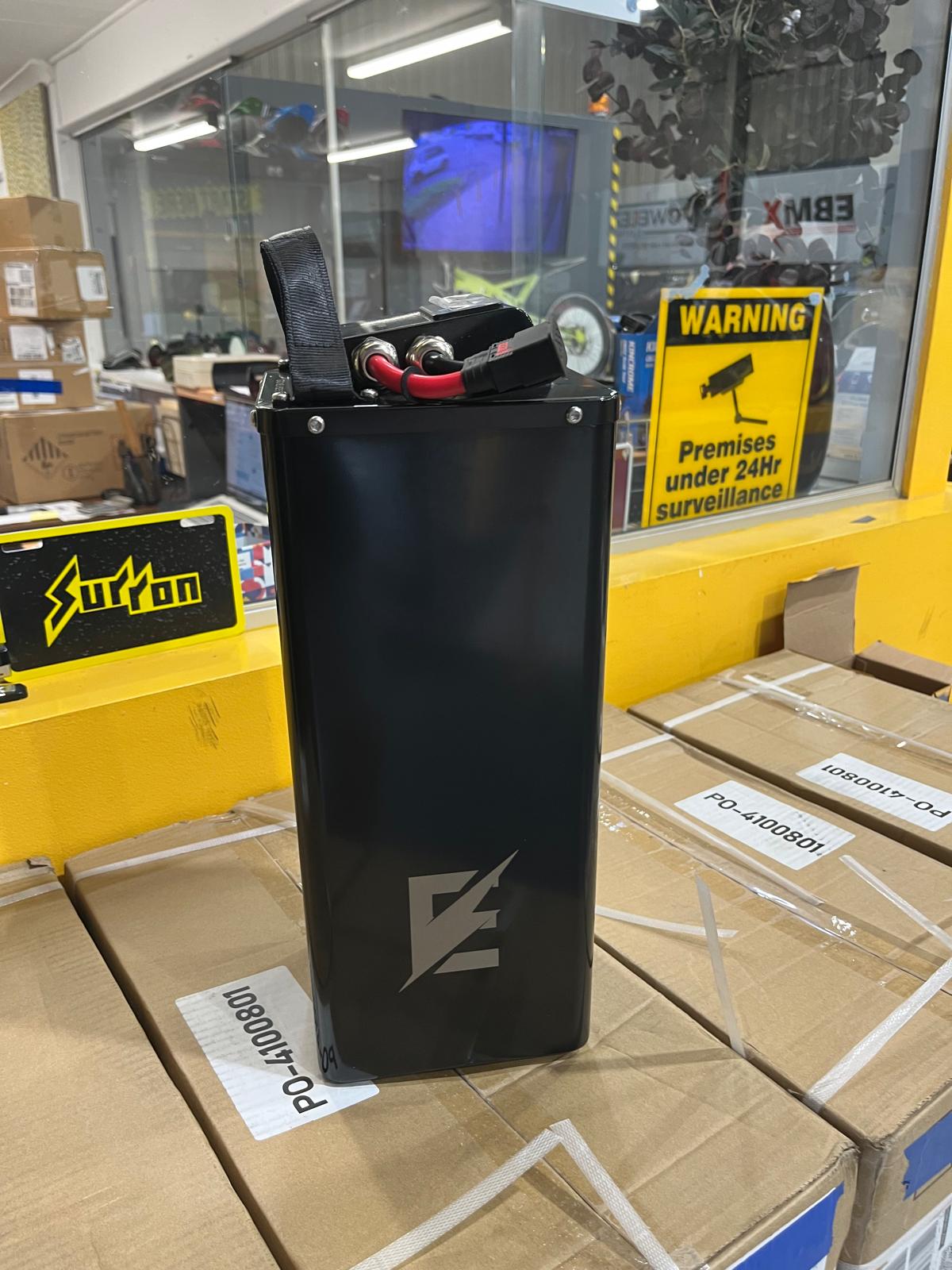

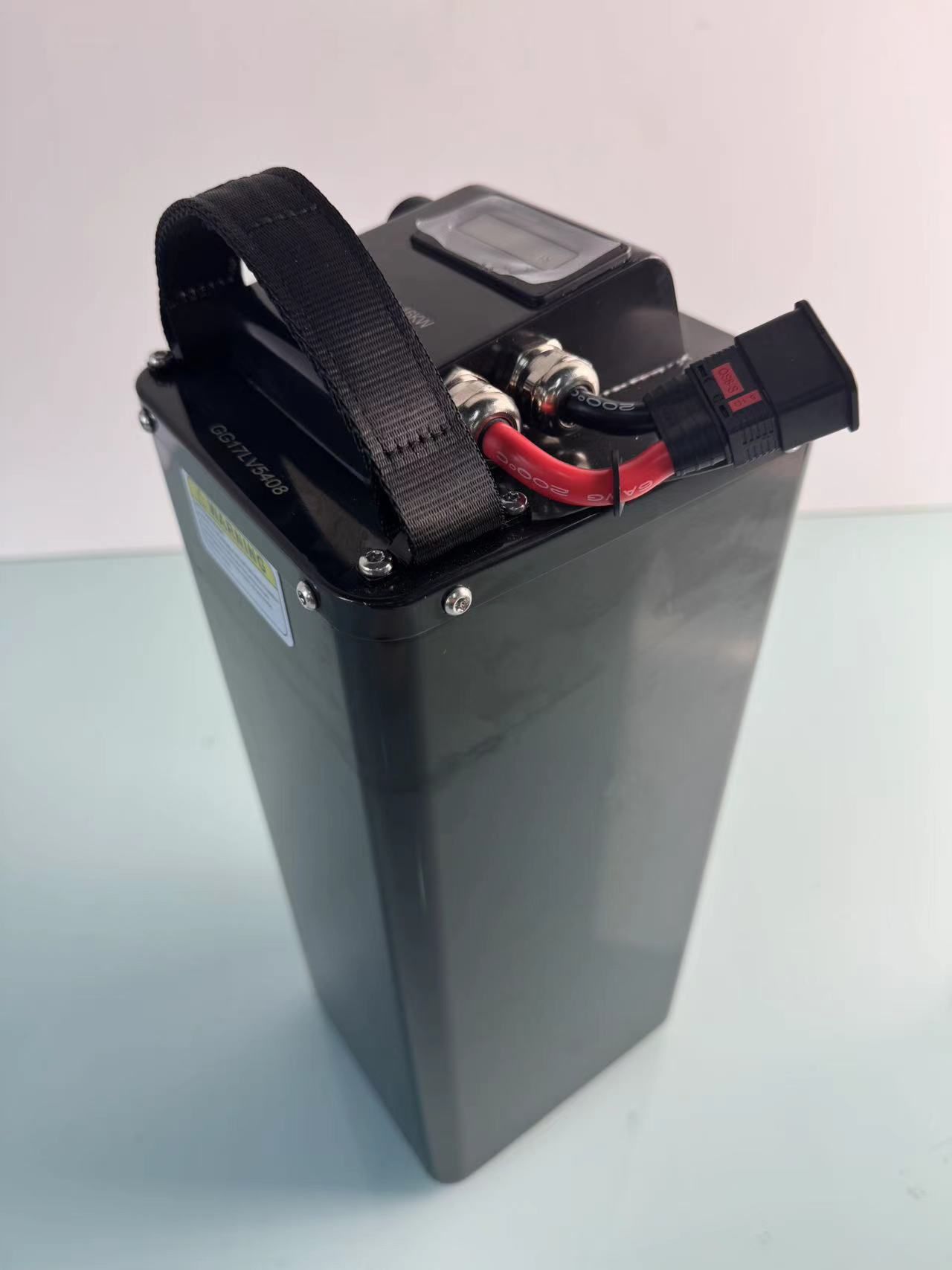

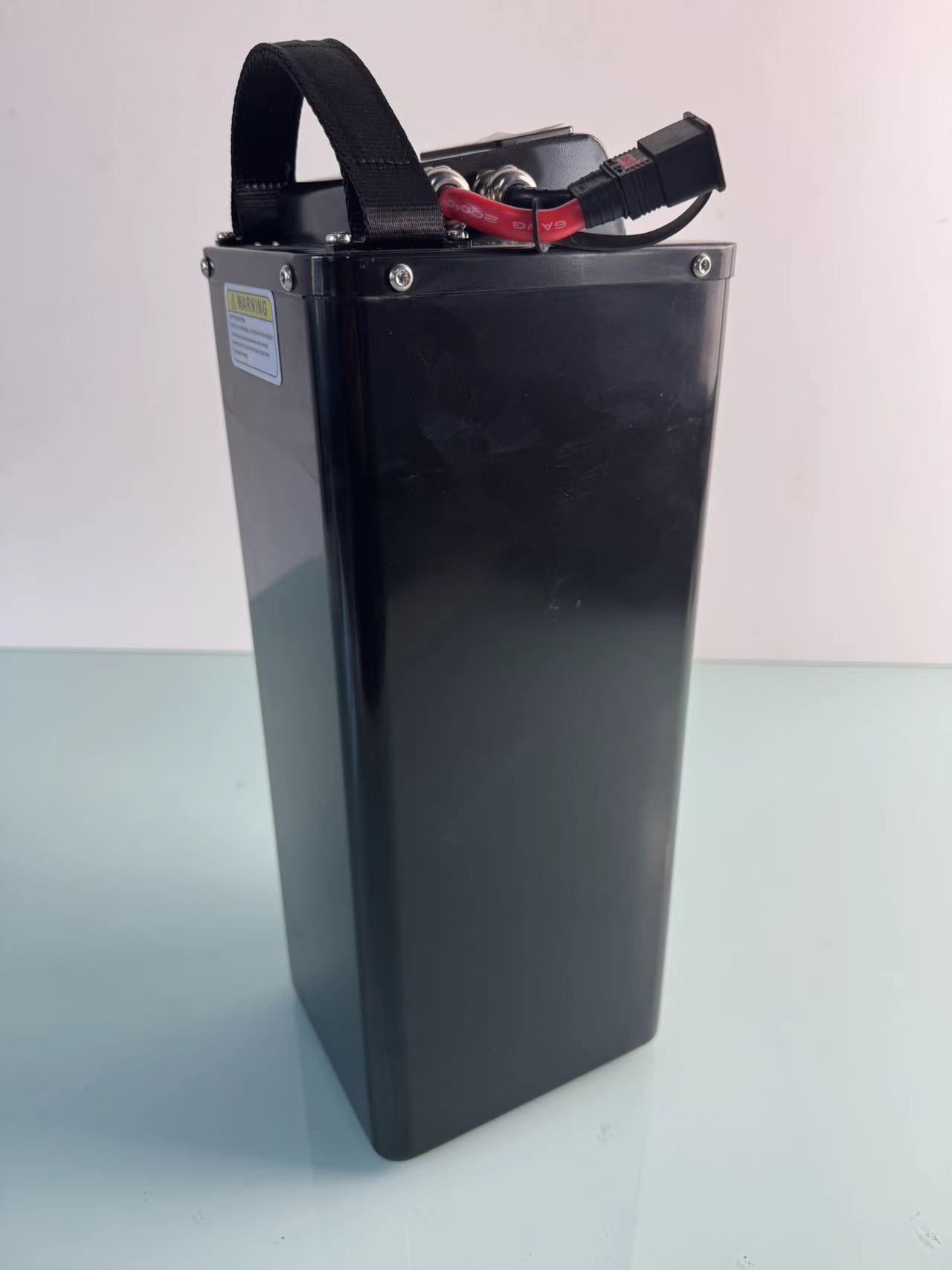

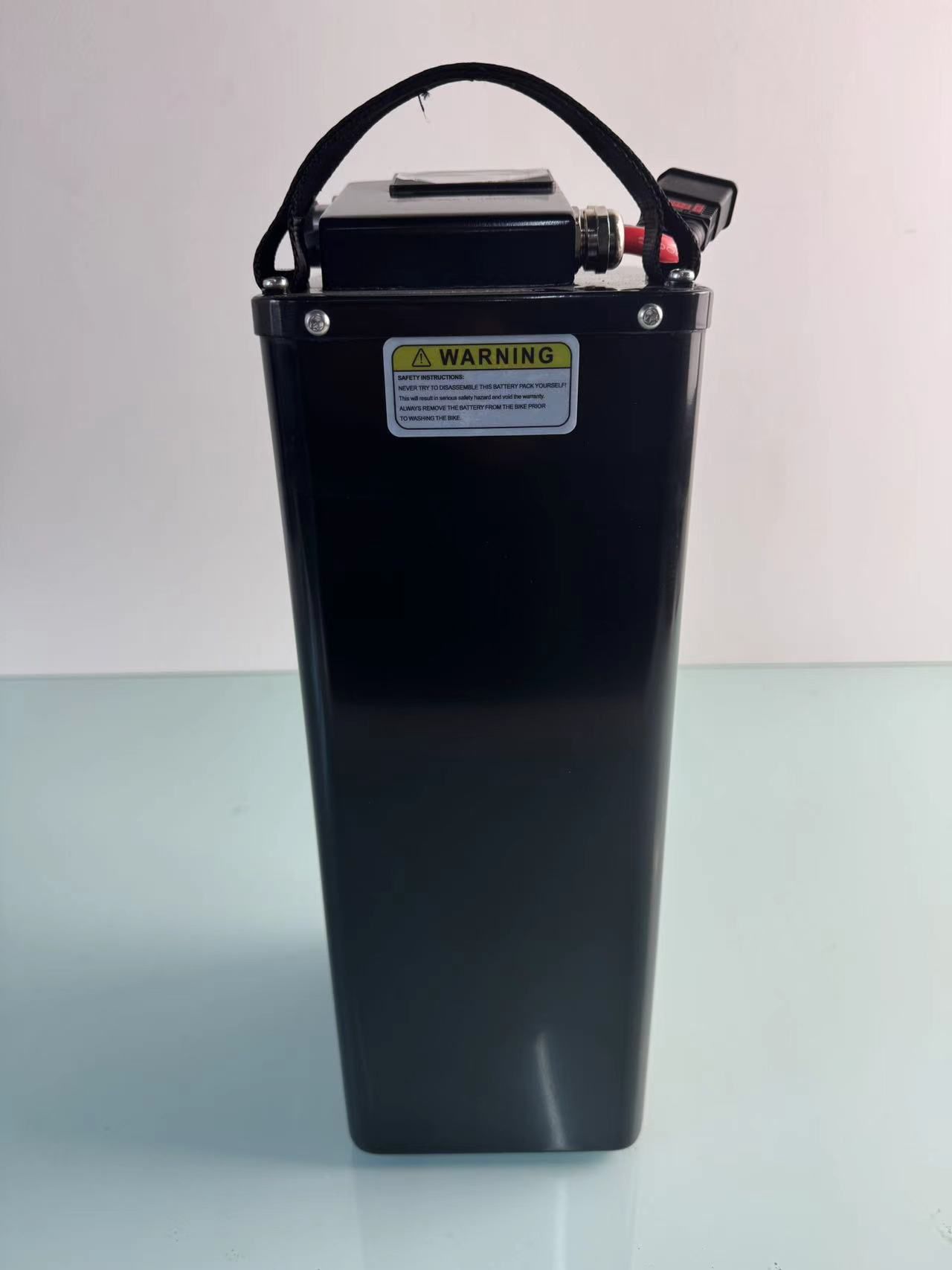

The Ride Longer 72v 63Ah LBX battery is a high-capacity battery upgrade for the SurRon Light Bee X. Built with NMC pouch cells potted inside a stainless-steel case, it delivers 4536 Wh of energy for longer rides and stronger performance.
Why upgrade to a 72v 63Ah LBX battery?
Range is the number one limitation of a stock Light Bee. A bigger battery means longer rides, more laps and less time waiting on the charger. Moving to 72 volts also unlocks more performance when paired with a suitable controller. This 72v 63Ah LBX battery uses pouch cells potted in a stainless-steel case, which results in fewer internal connections, higher charging and discharging capability and significantly higher power density – more power in a smaller space.
- 72v 63Ah battery for the SurRon Light Bee X
- 4536 Wh capacity for longer rides
- NMC pouch cells potted in a stainless-steel case
- Fewer internal connections and higher power density
- QS8 controller-side harness supplied
- 2-year non-transferable warranty
Fits without seat extenders
This battery does not require seat extenders. It is supplied with an extender hinge and longer clip so it fits your Light Bee neatly. If you already have seat extenders fitted, it will still fit.
Controller and charger
Because this is a 72v battery, make sure your controller and charger are compatible with 72v. A 72v charger such as our 72v 20A fast charger is required – 60v chargers are not suitable.

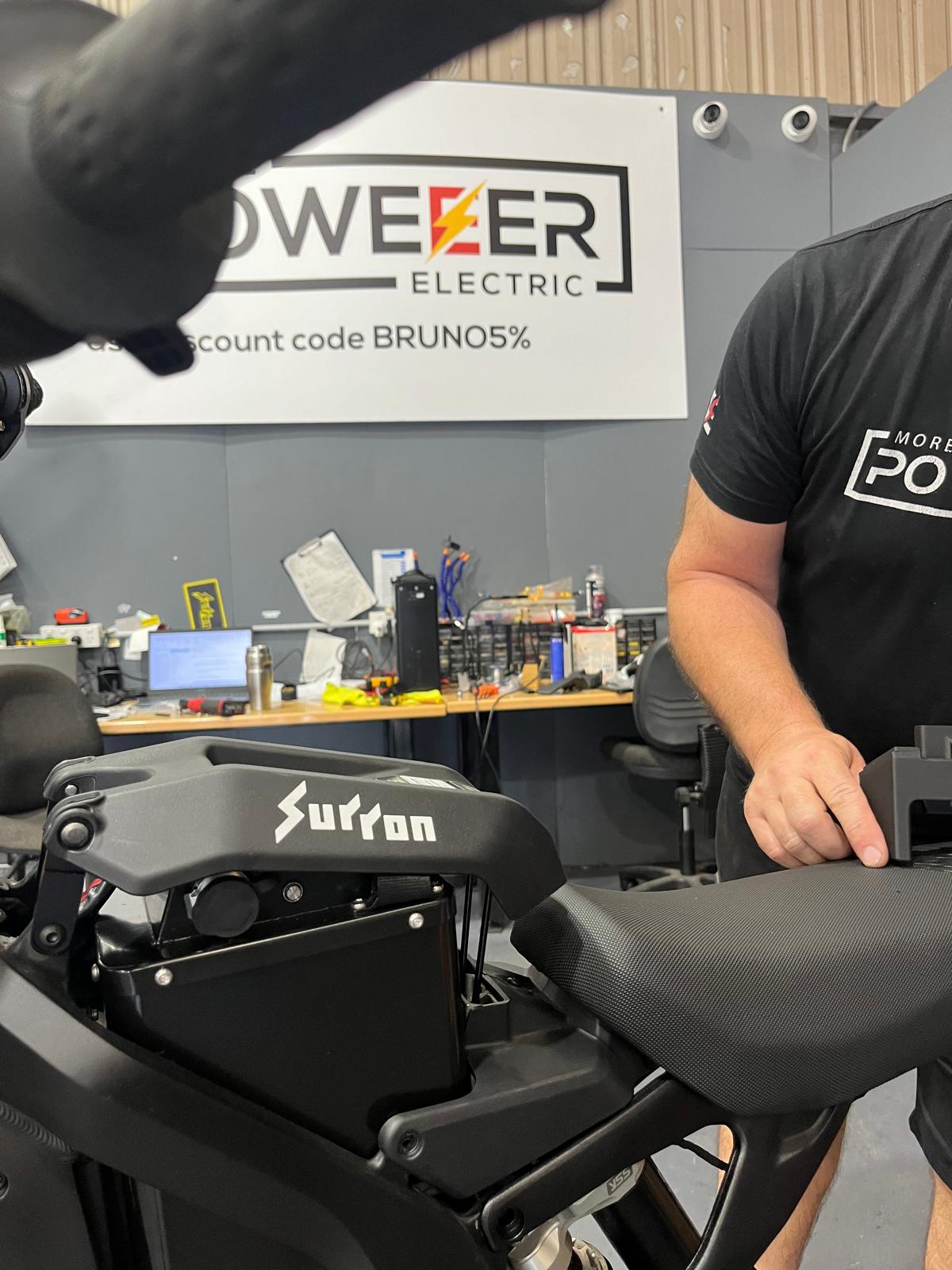

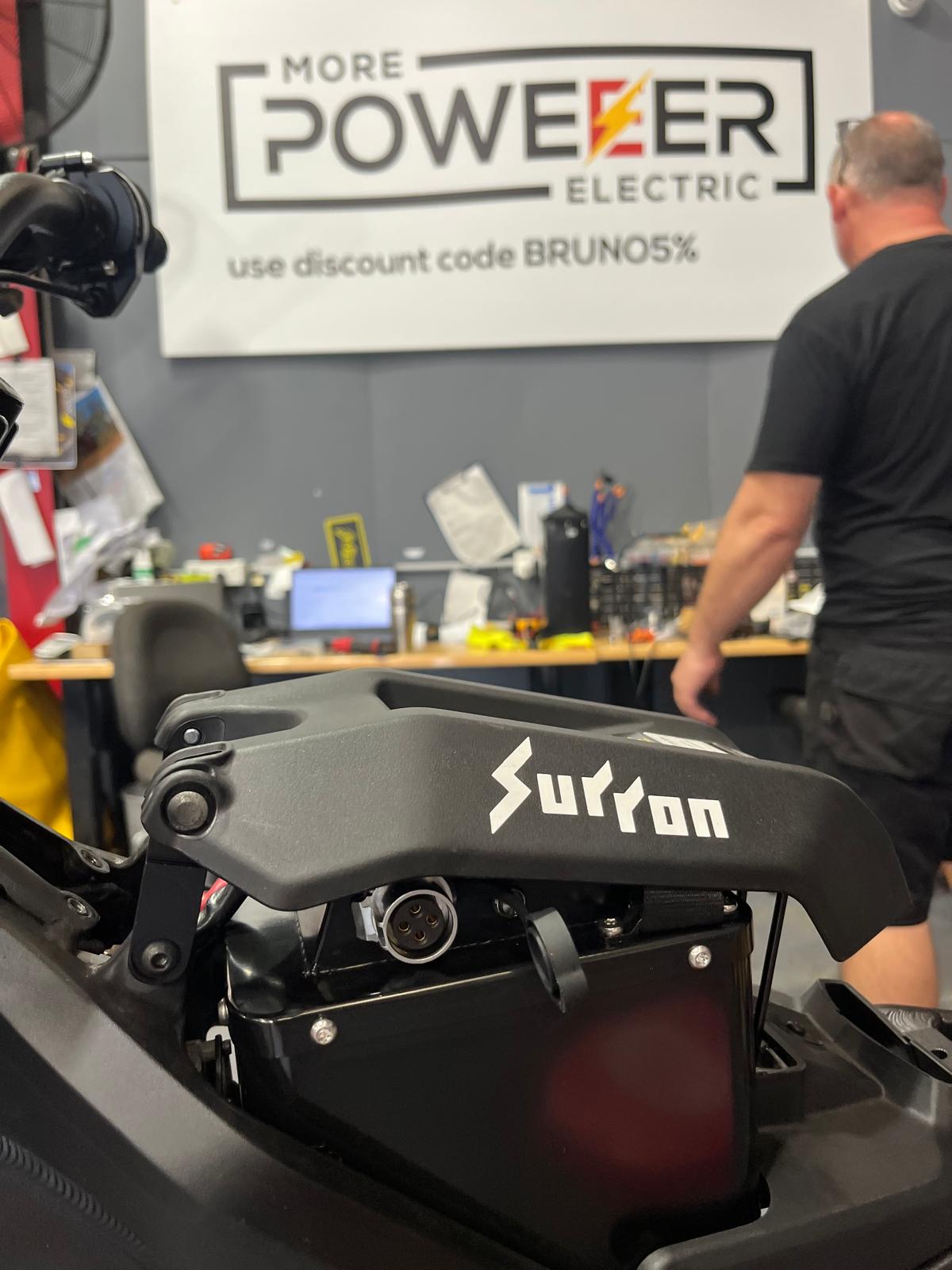

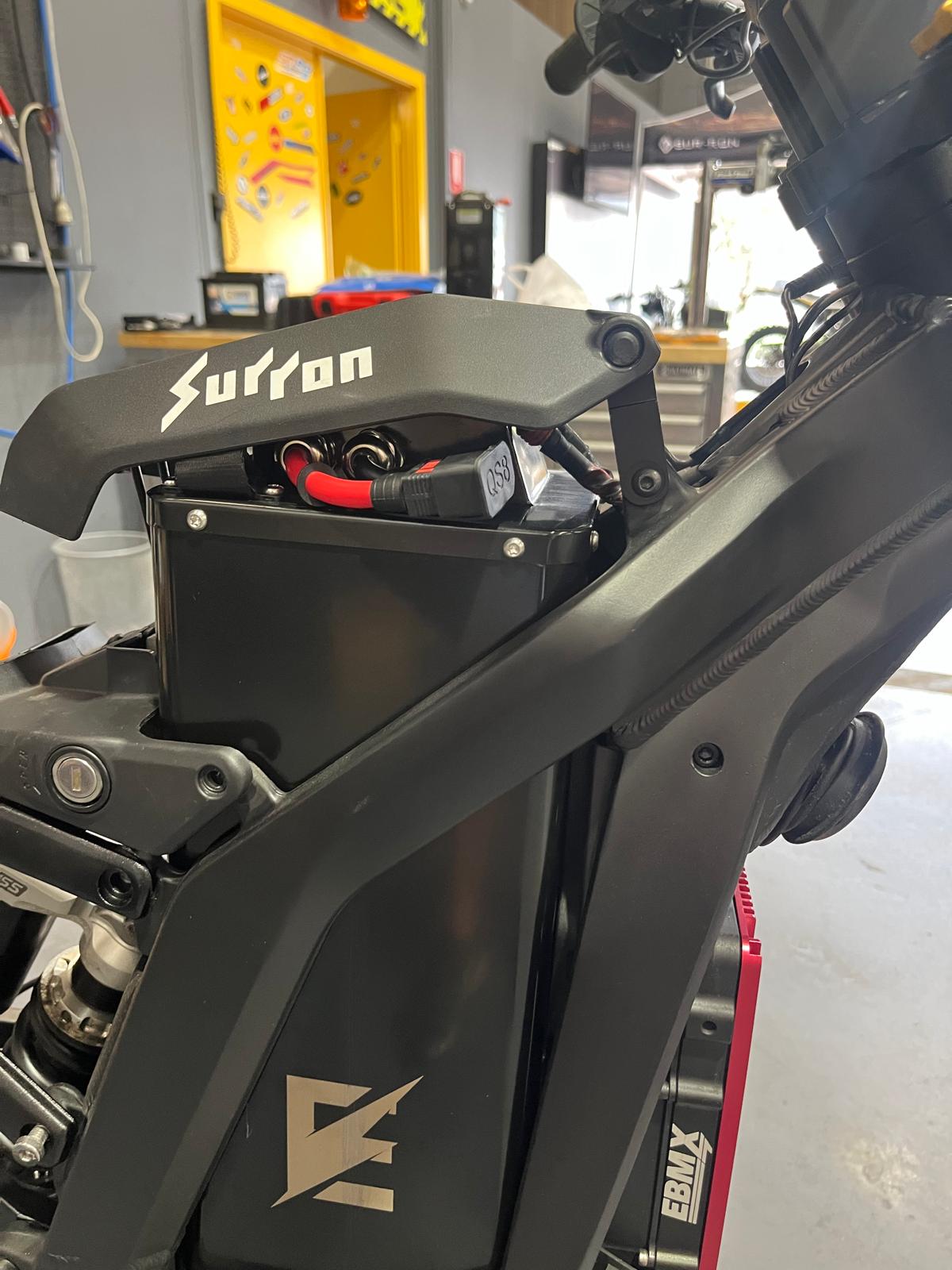

Fitting tips
- Turn the bike off and remove the existing battery
- Fit the supplied extender hinge and longer clip as instructed
- Connect the QS8 harness to your controller-side wiring, making sure the connection is fully seated
- Secure the battery and check the seat closes properly before riding
Battery care tips
Lithium batteries last longest when they are looked after. Avoid storing the battery completely flat or fully charged for long periods – around half charge is ideal for storage. Charge in a dry, ventilated area away from flammable materials, use the correct charger for your battery voltage, and never charge a battery that is damaged, swollen or has been submerged. Let a hot battery cool down after a hard ride before charging.
Fitment and compatibility
Designed for the SurRon Light Bee X. Requires a 72v-compatible controller setup. Contact us if you are unsure whether your bike is ready for 72v.
More power upgrades
Browse batteries and chargers and SurRon Light Bee modifications.
72v 63Ah LBX battery FAQ
Do I need seat extenders?
No. It comes with an extender hinge and longer clip.
What warranty does it have?
A 2-year non-transferable warranty.
Ordering tips
Before you order 72v 63ah lbx battery, check your bike model and year and compare your existing part with the photos on this page. If anything looks different, or your bike has been modified, send us a photo and we will confirm fitment before it ships.
Why buy 72v 63ah lbx battery from Electric Dirt Bikes?
We specialise in SurRon, Talaria and E-Ride Pro electric dirt bikes, parts and upgrades. When you order 72v 63ah lbx battery from Electric Dirt Bikes, you can talk to our team about fitment and setup before you buy – just contact us with your bike model and year and we will point you in the right direction.
For background on the bike platform itself, visit the official SurRon website.
Product notes
Fitting: a controller-side QS8 harness is in the box, along with an extender hinge and a longer clip, so this 72v 63ah LBX battery sits in the frame without seat extenders. Already running seat extenders? It still fits.
Inside, NMC pouch cells are potted within a stainless-steel shell. Fewer internal joins means the pack can accept and deliver current harder than a conventional build, while squeezing more energy into the same space. Warranty cover is two years for the original purchaser.
| Capacity | 63 Ah / 4,536 Wh |
|---|---|
| Peak output | 28 kW |
| BMS limit | 400 A |
| Ingress protection | IP65 |
| Mass | 19.65 kg |
