Description
The BC351 display is a new large display that works with the X-9000 motor controller and replaces the smaller SW102 display. It works with any X-9000 V2 on any motor or battery combination, and options are available for V2 and V3 X-9000 controllers.
Why upgrade to the BC351 display?
The stock SW102 display is compact, but it can be hard to read at a glance on the move. The BC351 display gives you a much larger screen, making speed, battery level and other riding information easier to see. Thanks to CAN bus communication, the display works more closely with the controller for a better-integrated setup.
- New large display for the X-9000 motor controller
- Replaces the smaller SW102 display
- Works with any X-9000 V2 on any motor or battery combination
- Options for V2 and V3 X-9000 controllers
- CAN bus communication with the controller
Important Ultra Bee compatibility note
The BC351 display is not compatible with the regular V3 Ultra Bee harness. For Ultra Bee functionality, you will need a V3 Ultra Bee race harness. Please check the product notes and contact us before ordering if you are running an Ultra Bee.
Special order
This item is a special order product. Contact us for availability and timing.
Fitting tips
- Turn the bike off and disconnect the battery before working on the display wiring
- Remove the old display and note how its cable is routed

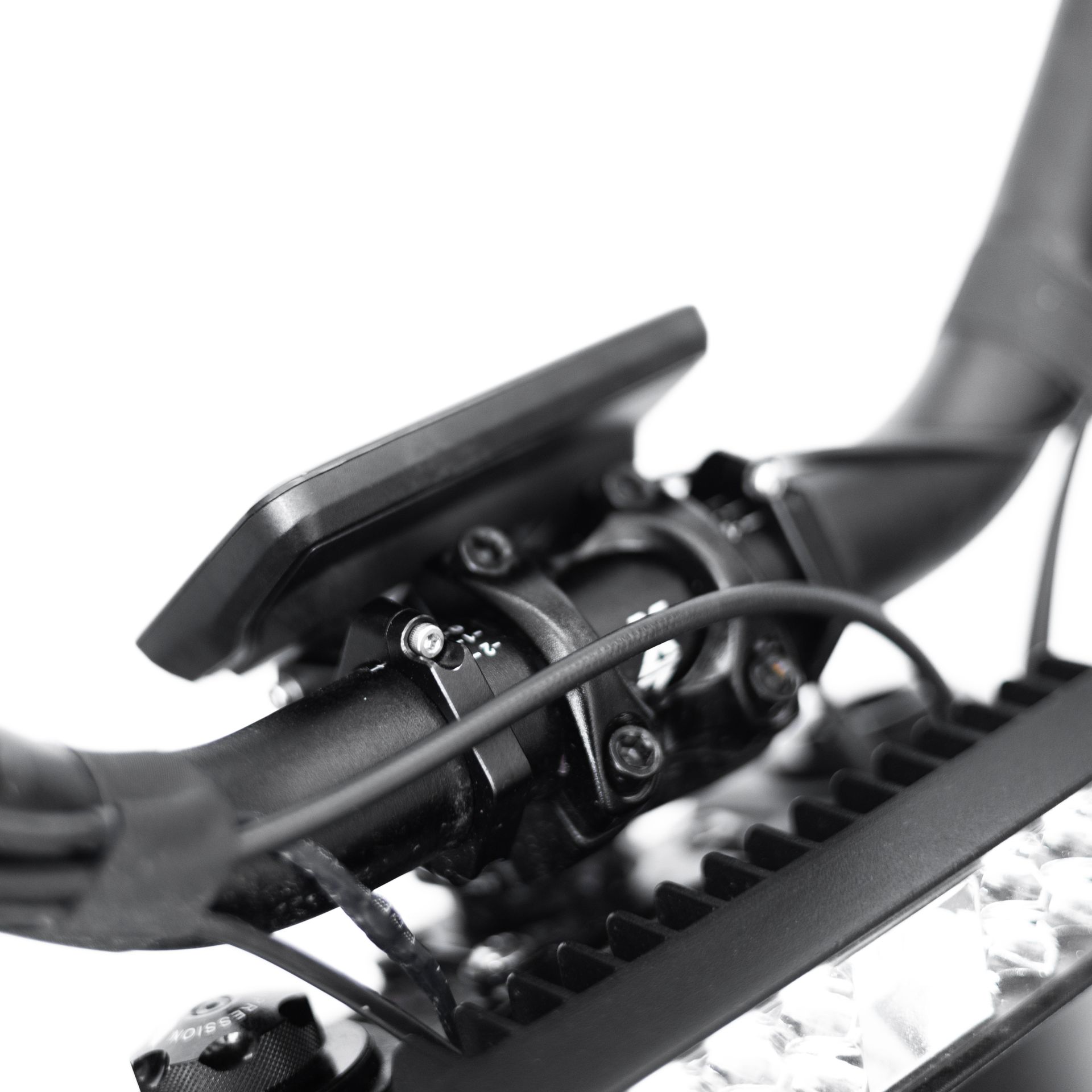

- Mount the BC351 display where it is easy to read and protected by the bars
- Connect the display, secure the cable and power up to check everything works
Protect your investment
Pair your new BC351 display with our CNC-machined protective casing, available in a choice of colours.
Protect your wiring
Route the harness away from sharp edges, the swing arm and the steering stops, and secure it with cable ties that are snug but not over-tight. A little dielectric grease on exposed connectors helps keep moisture out, and avoiding direct pressure washing around the controller and plugs will help your electrics last.
Fitment and compatibility
Choose V2 or V3 X-9000 from the options above. Not compatible with the regular V3 Ultra Bee harness.
More X-9000 parts
Browse motors and controllers, power upgrades and Light Bee performance mods.
BC351 display FAQ
What does it replace?
The smaller SW102 display.
Does it work on the Ultra Bee?
Only with a V3 Ultra Bee race harness – not the regular V3 harness.
Ordering tips
Before you order bc351 display, check your bike model and year and compare your existing part with the photos on this page. If anything looks different, or your bike has been modified, send us a photo and we will confirm fitment before it ships.
Why buy bc351 display from Electric Dirt Bikes?
We specialise in SurRon, Talaria and E-Ride Pro electric dirt bikes, parts and upgrades. When you order bc351 display from Electric Dirt Bikes, you can talk to our team about fitment and setup before you buy – just contact us with your bike model and year and we will point you in the right direction.
For background on the bike platform itself, visit the official SurRon website.
Product notes
The BC351 is a larger CAN-bus screen for the X-9000 controller and takes the place of the compact SW102. Because it talks to the controller over CAN rather than UART, readings update quicker and more precisely. It suits any X-9000 V2, whatever motor or battery it is paired with.

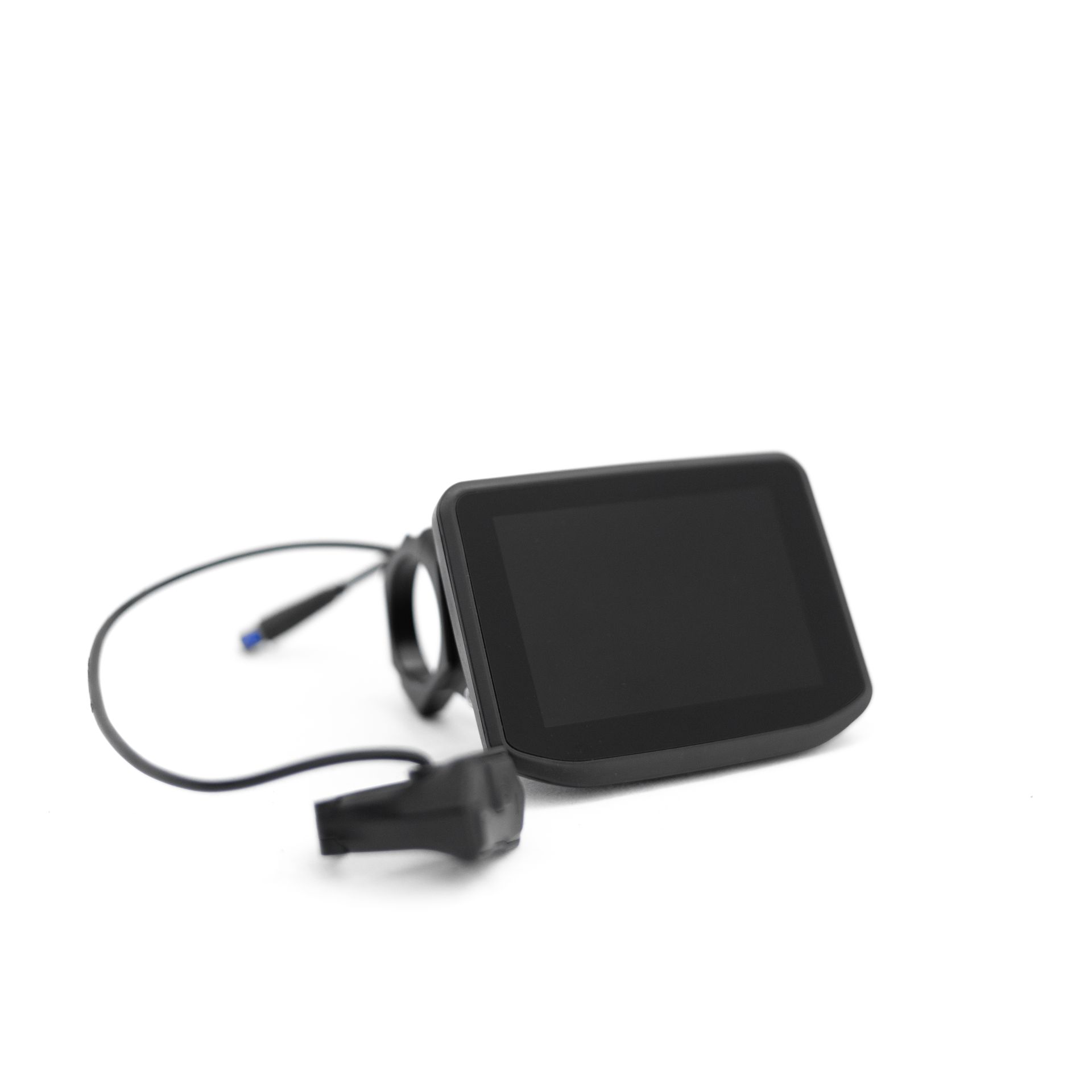

In the base kit

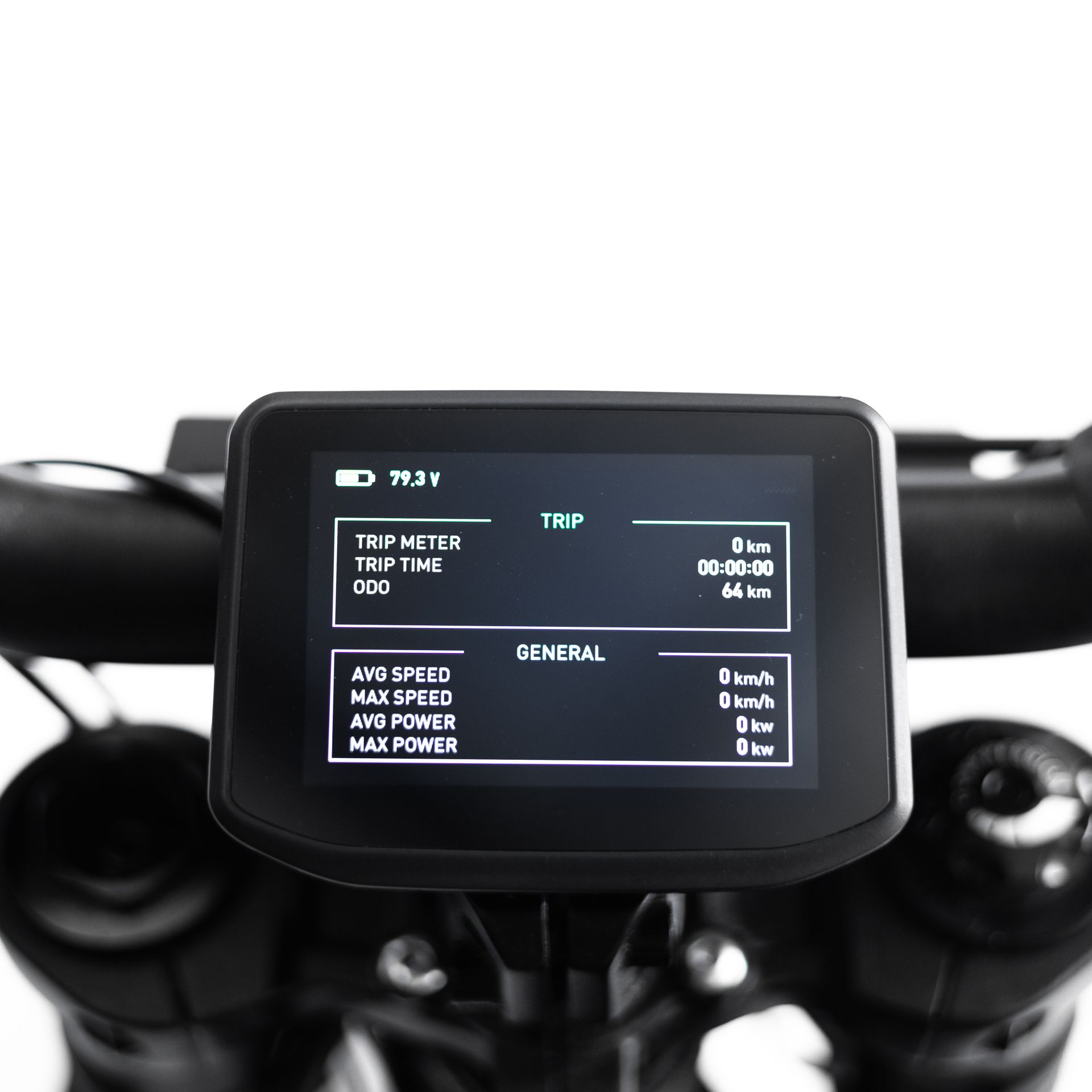

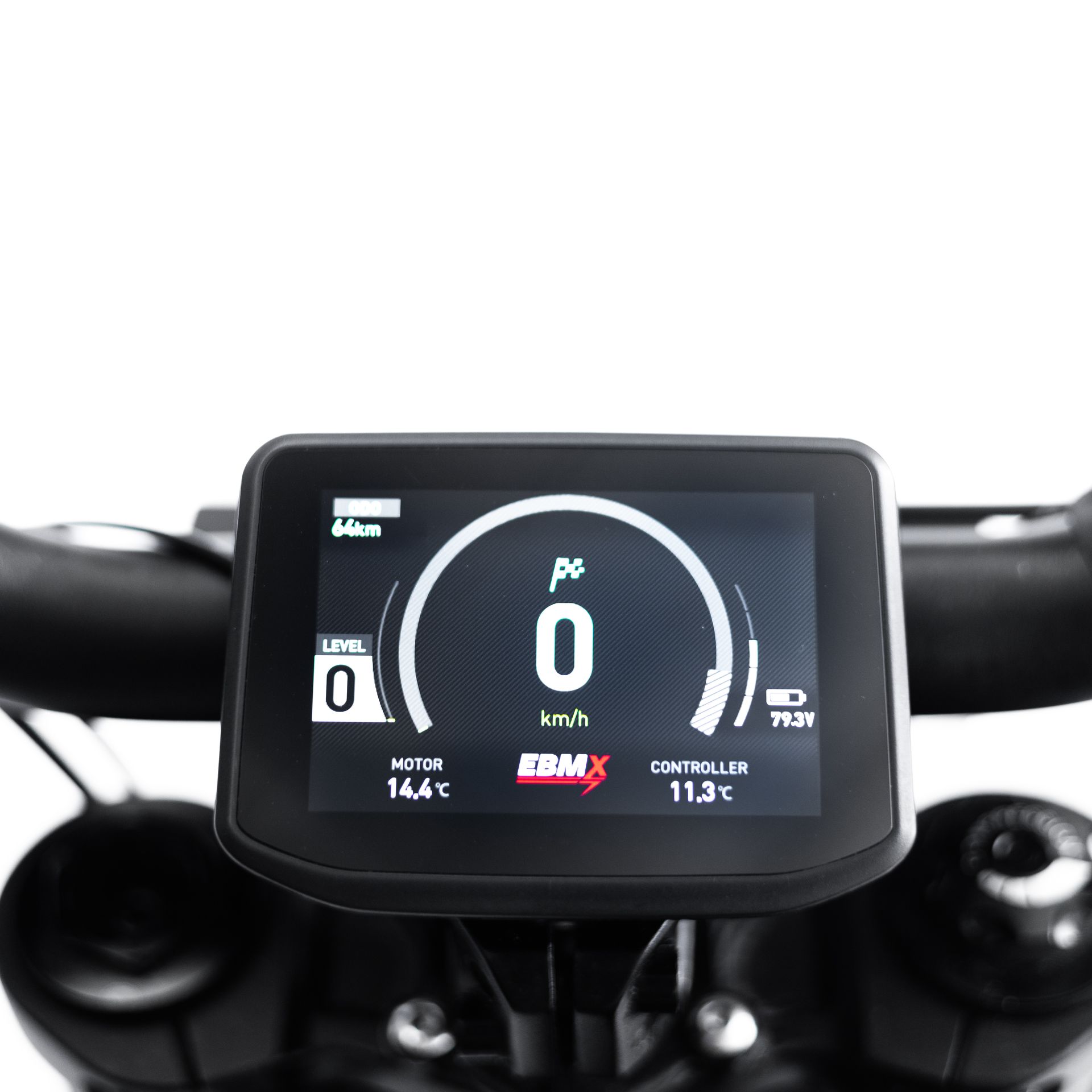

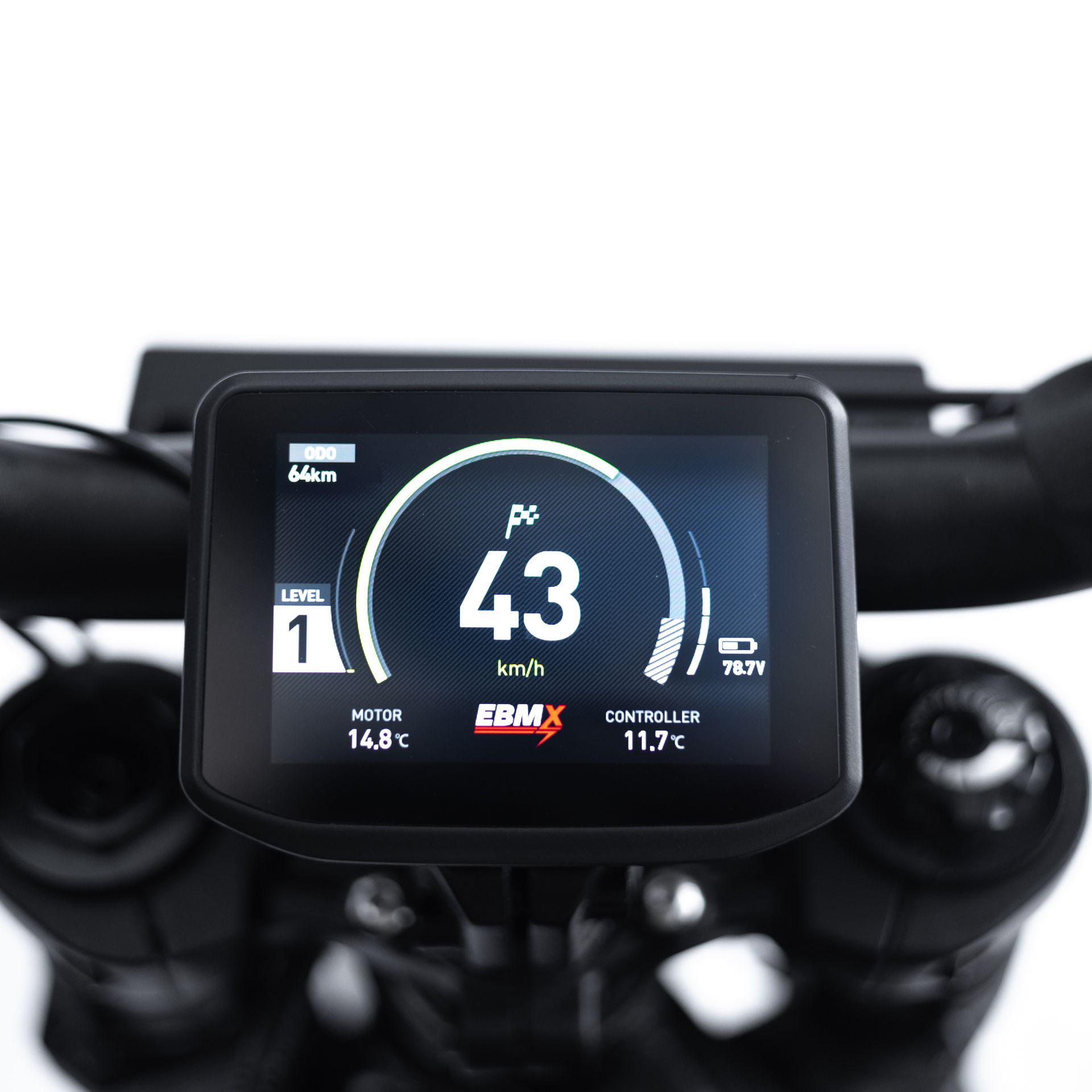

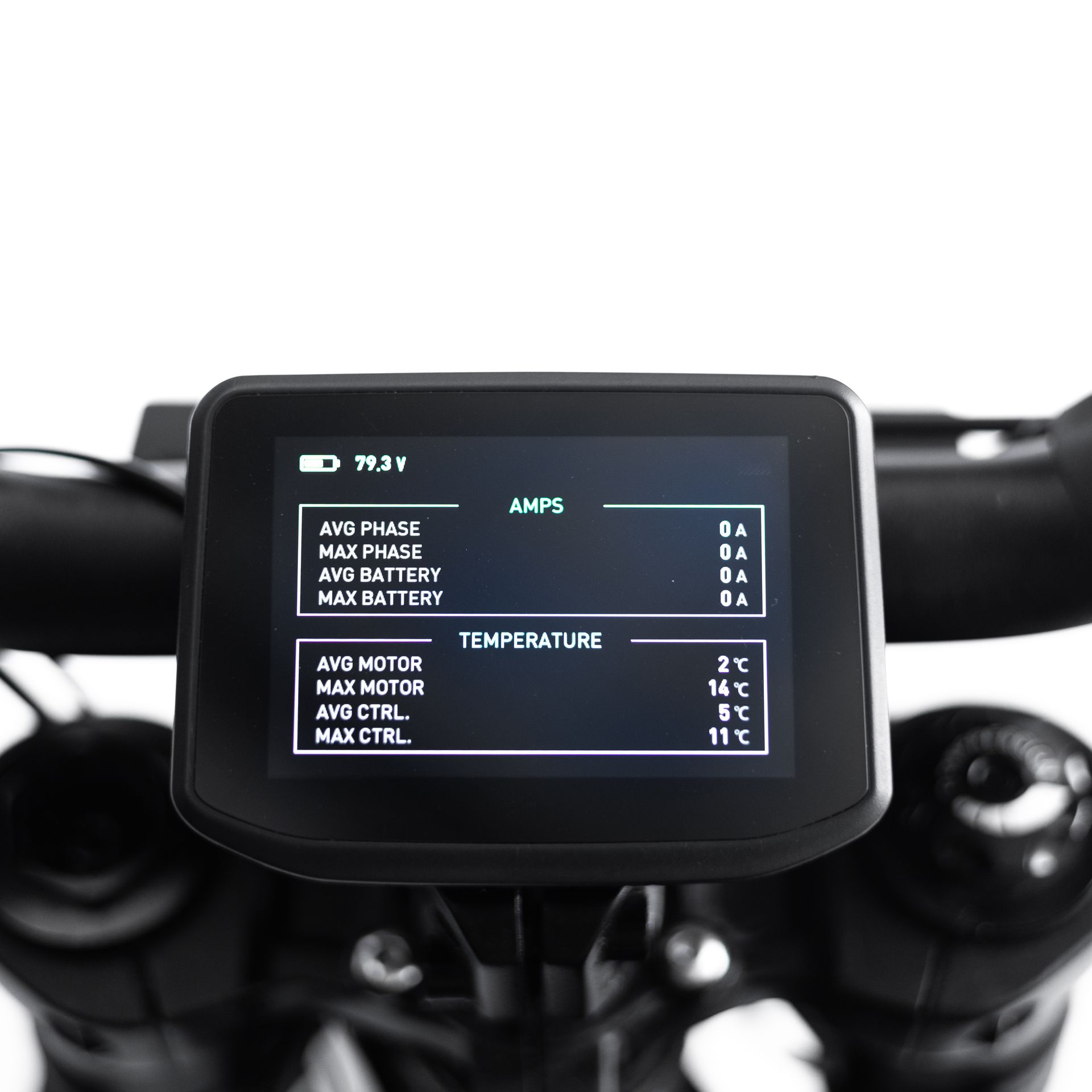

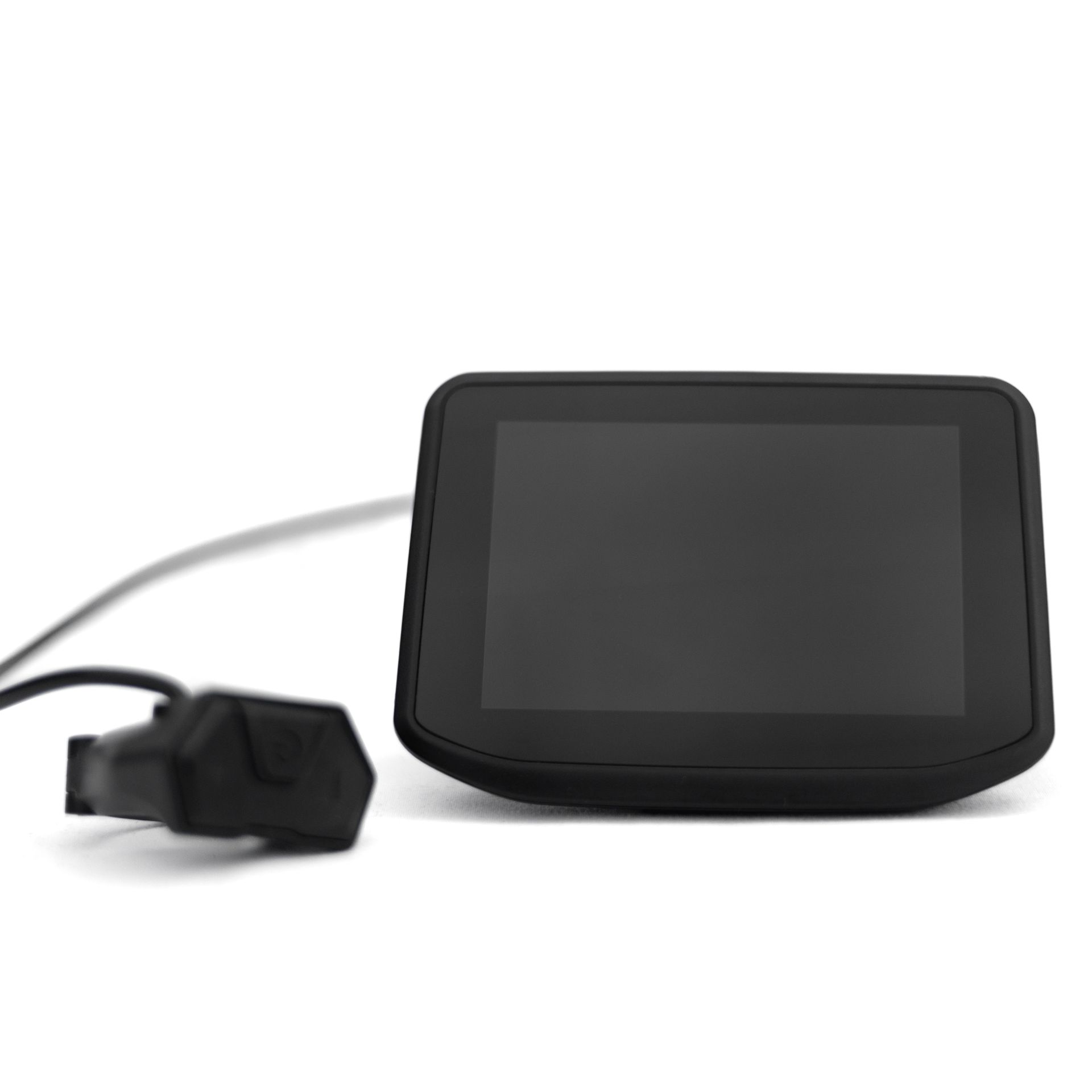

- 3.5-inch TFT screen with a redesigned interface showing ride data
- IP67 sealing

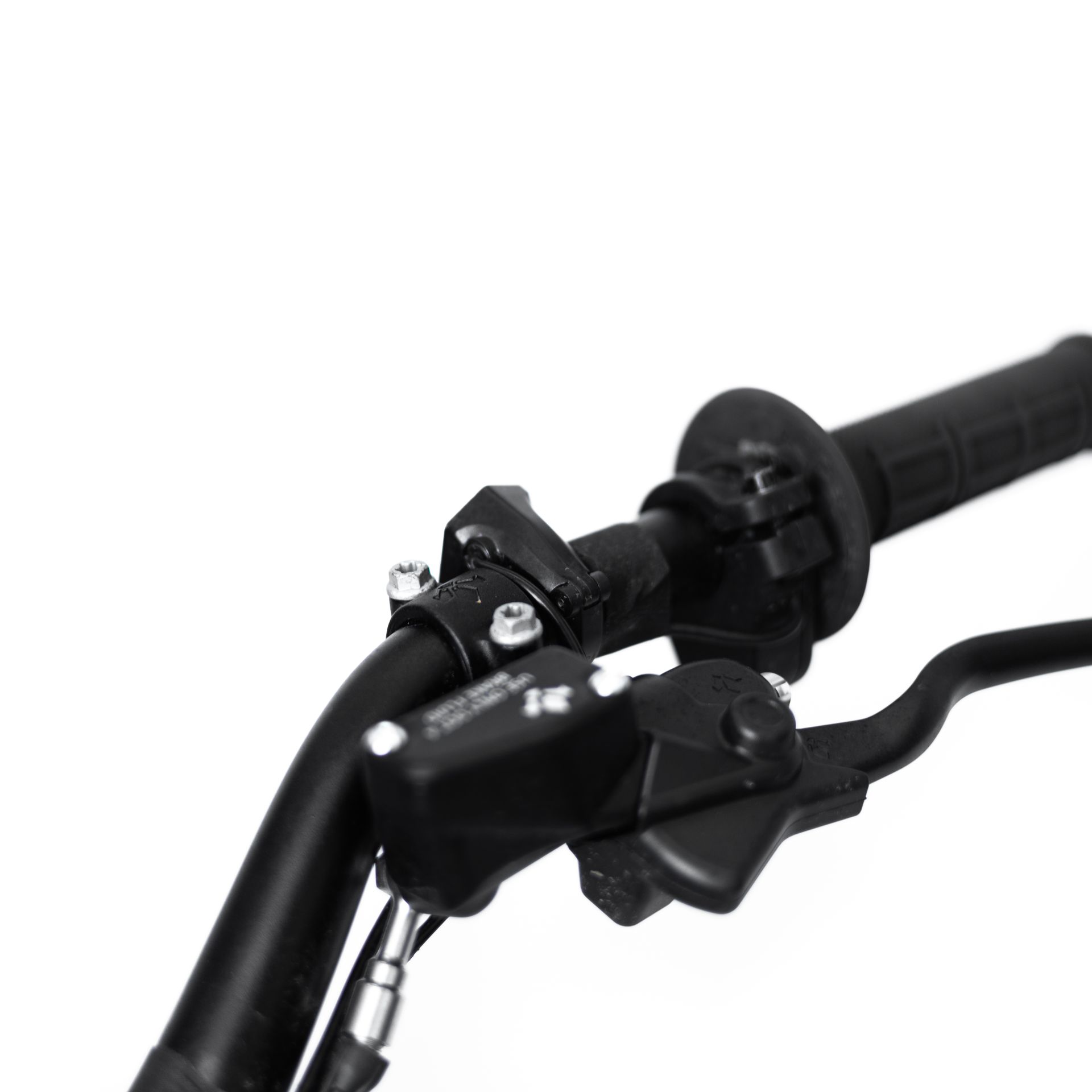

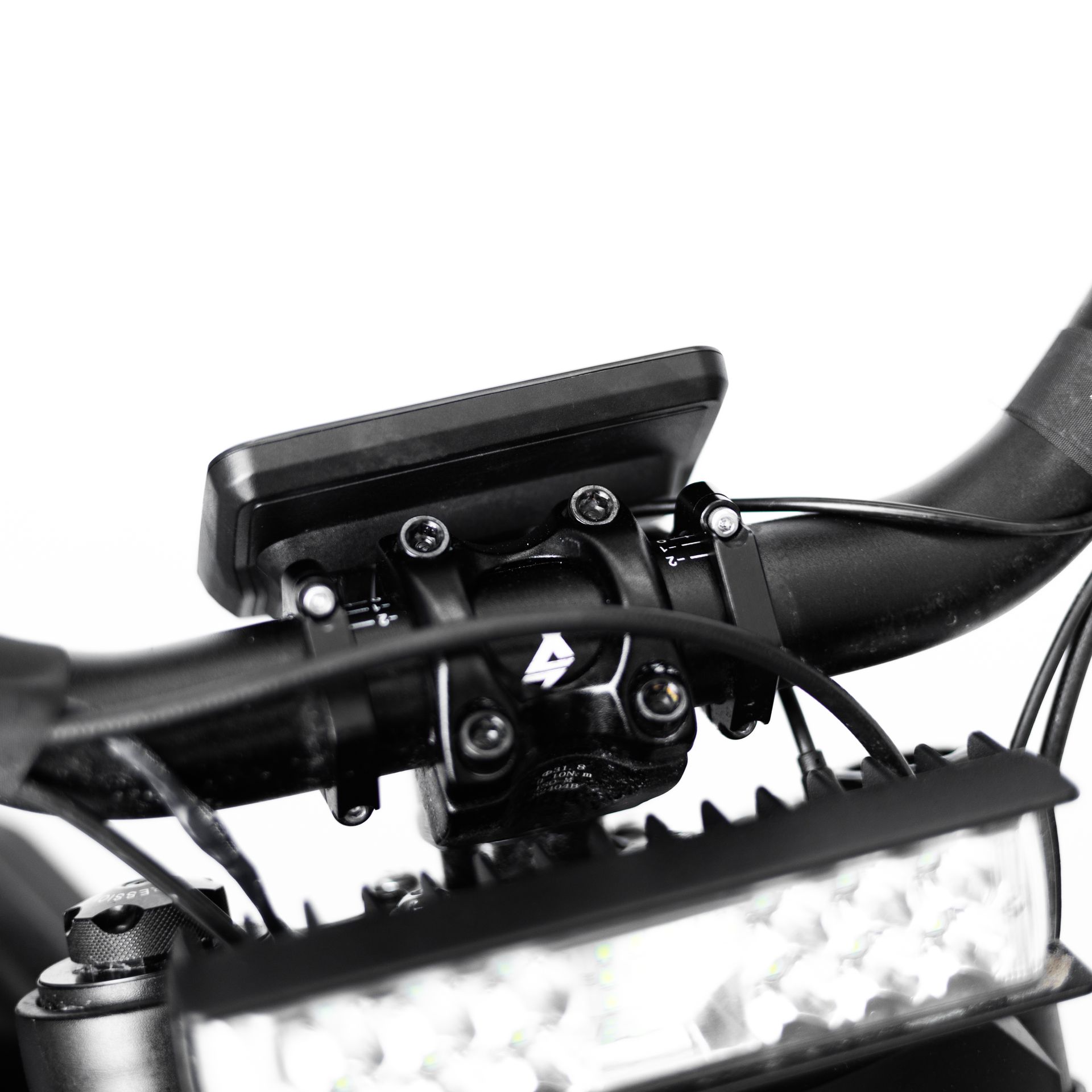

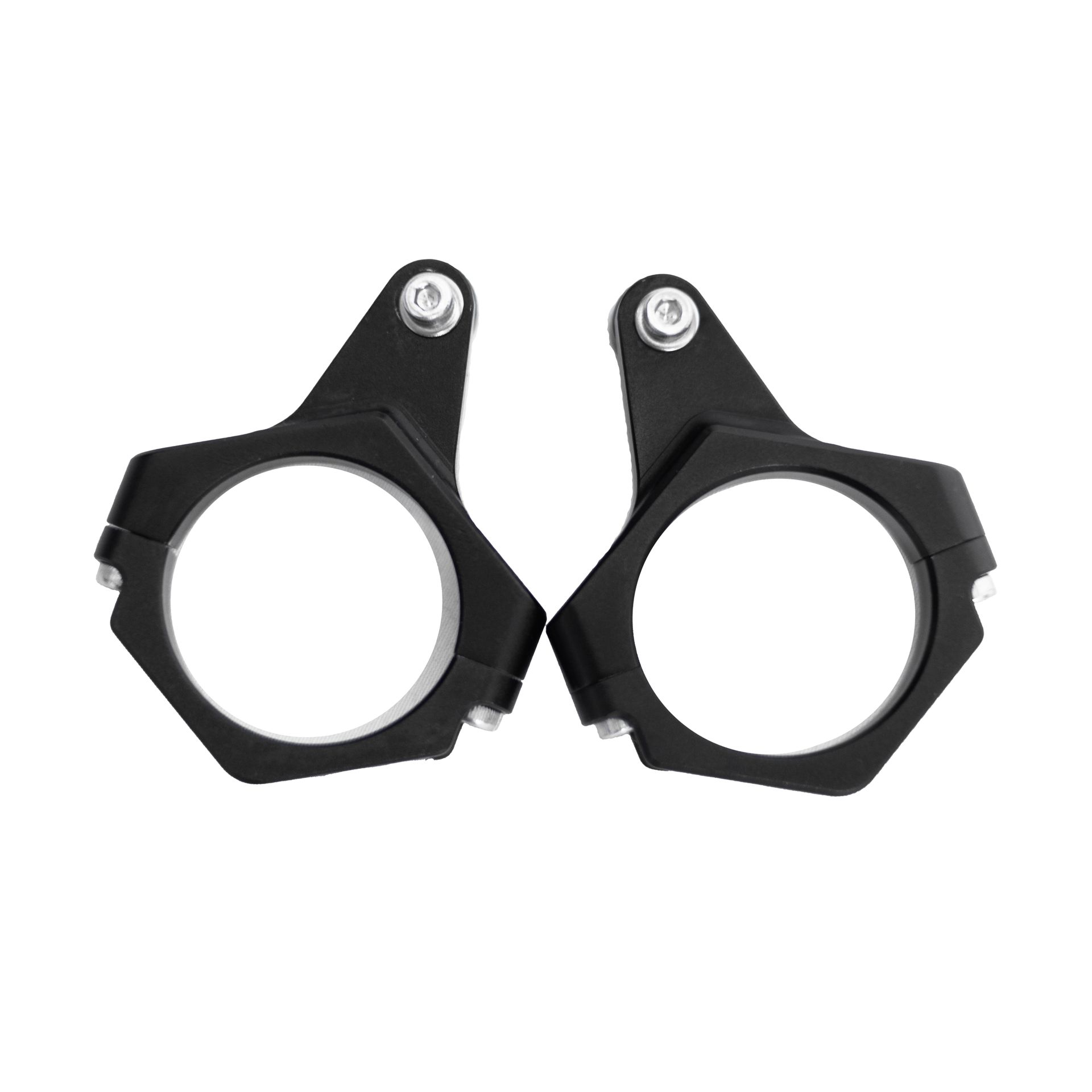

- CNC-machined mounts for both 31.8mm and 28.6mm bars (MTB and moto)
- CAN-bus 2-to-1 cable

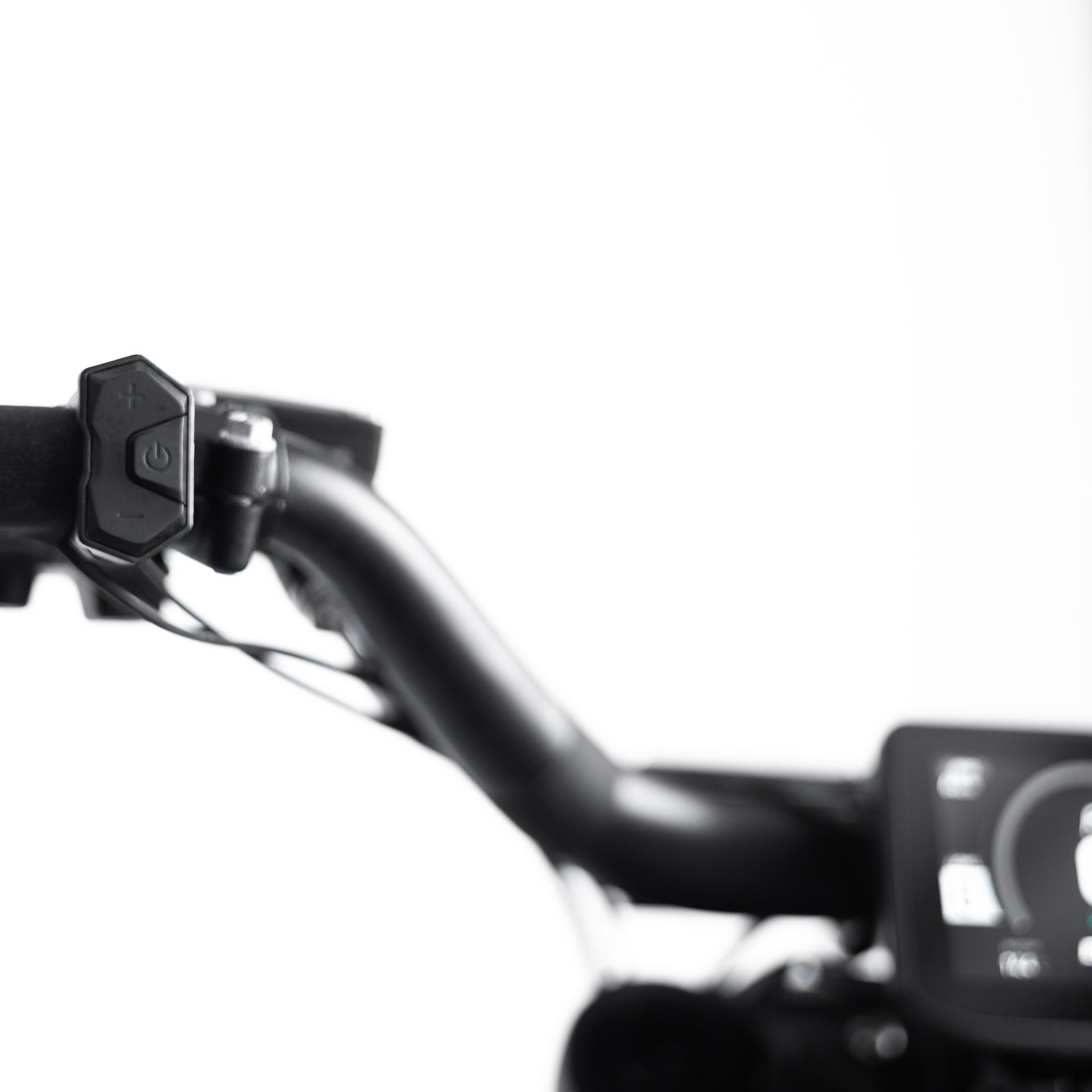

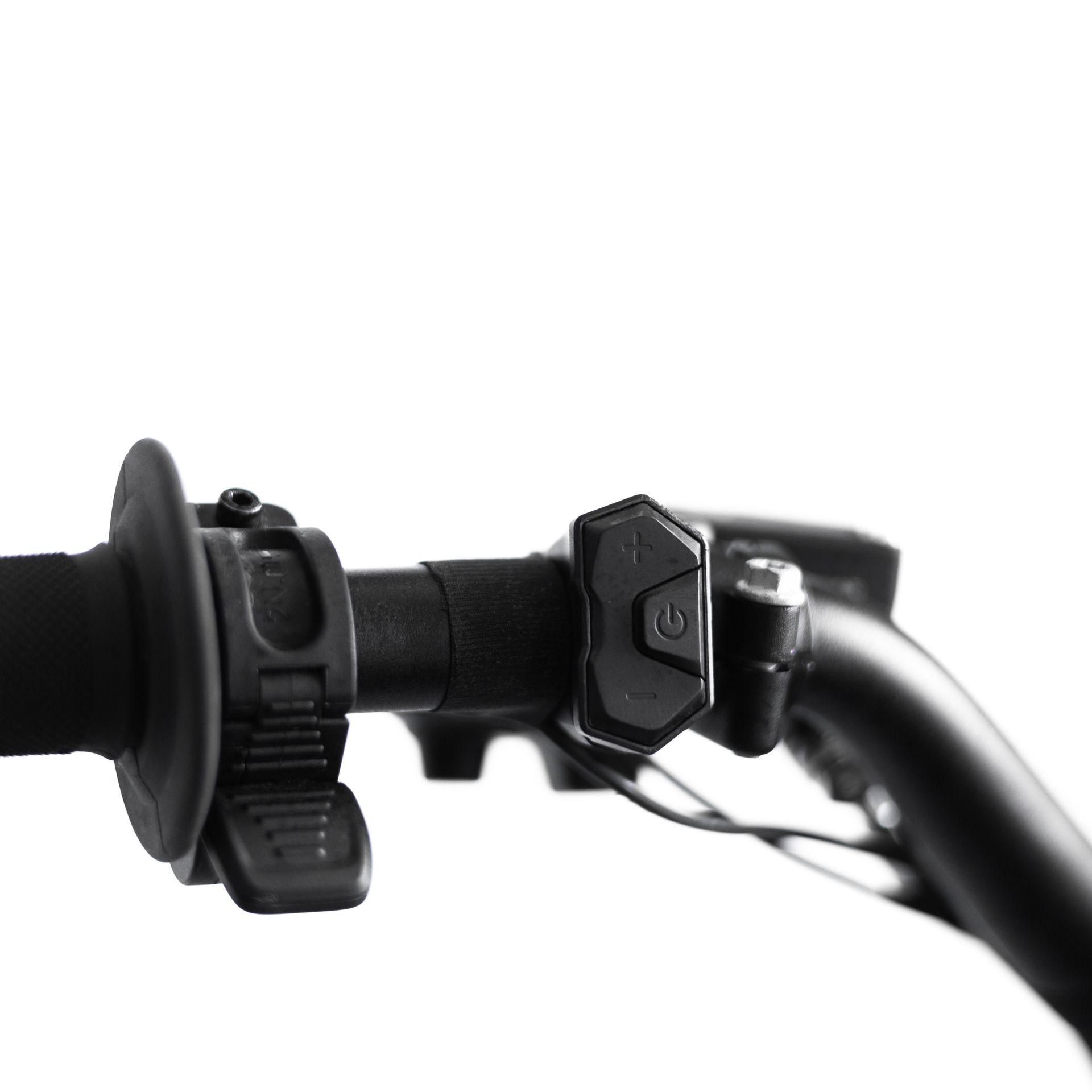

- Replacement mode button
- Cable lengths: 350mm display-to-button, 250mm display-to-CAN connector
There is nothing to configure – install the bc351 display and ride, provided the controller runs firmware 830 or newer. A protective mounting case and Ultra Bee-specific brackets are sold separately.
Ultra Bee R owners, take note: the screen will physically fit and run from the X-9000, but it does not connect to the road bike’s lighting and indicator circuits, so indicator status will not show. We do not consider that safe and do not recommend it for road-registered Ultra Bee R use (our advice as of September 2024).
